225MHZ 1920X1200 video Splitter 1x4 2K Support Full HD 3D 1080P DVI Splitter

FOB Reference Price:Get Latest Price
$35.00 - $55.00 / Pairs | 1 Pair/Pairs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
DTECH
Model Number:
DT-7024
Place of Origin:
Guangdong, China
DVI version:
1920X1440
Material:
Metal shell
Vision:
Full 3D
Standard:
timing DDWG Standard
Max bandwidth:
225MHz
Switching speed:
lower than 180ns
Transimission distance:
≤20m AWG26
Warranty:
365days,life-time free maintenance
MOQ:
1PCS
Signal Type:
DVI-I digital video signals.
Supply Ability
Supply Ability:
10000 Pair/Pairs per Month DVI Splitter 1 to 4
Packaging & Delivery
Packaging Details
DVI Splitter 1 to 4
DTECH COLOR BOX, English version
12pairs/CTN
Weight: 18.6kg/CTN
CTN size: 51*41*31.5 cm
Port
guangzhou, shenzhen, foshan

225MHZ 1920X1200 video Splitter 1x4 2K Support Full HD 3D 1080P DVI Splitter

CE RoHs CE certified 1 to 8 port 3D TV lcd screen cctv av audio video ethernet 4k hdmi splitter 1x8

Product Description

1. Introduction



1*4 splitter is the perfect solution for anyone who needs to send one video signal to 4 displays at the same time.

DVI Splitter offer solutions for monitors or projectors retail, and Projector factory, noise, space and security concerns,

data center control, information distribution, conference room presentation, school and corporate training environments.

1 input with 2 4 8 output 4k HDMI splitter

2. Product parameters

Support DVI-D
High bandwidth, high transfer rate, high resolution, high power output, low noise, low consumption.
Support cascade
Support 1080P, 1920x1200@60Hz
Exclusive circuit design, supports long distance transfer.



3. Specification:

FunctionInput1 way
 Output4 ways
 Video Input portDVI-I (Support DVI-D signal only)
 Video Output PortDVI-I (Support DVI-D signal only)
 Video Source TypeDVI1.0, DVI-D all digital T.M.D.S signal
Video Port & PerformanceMax Resolution1920×1080@60HZ,1920×1200@60HZ
 DVI Bandwidth1.65GHZ
 Input/Output SignalT.M.D.S:800mVp_p
 Input Cable≤20m
 Output Cable ≤20m
 Size(L×W×H)108mm×80mm×26mm
Physical FeaturesCaseAluminum case
 ColorBlack
 Net Weight148g
Power AdaptorOperating VoltageInput:AC110V-220V,50/60HZ,Output:DC 5V/1A
 Power Consumption<0.6W
 Operating Temperature0°C-50°C
SurroundingsStorage Temperature-20-80°C
 Humidity5%-75% (No condense)



Product Photo Show





Popular Displayport 225MHz 1 input 2 output audio DVI splitter

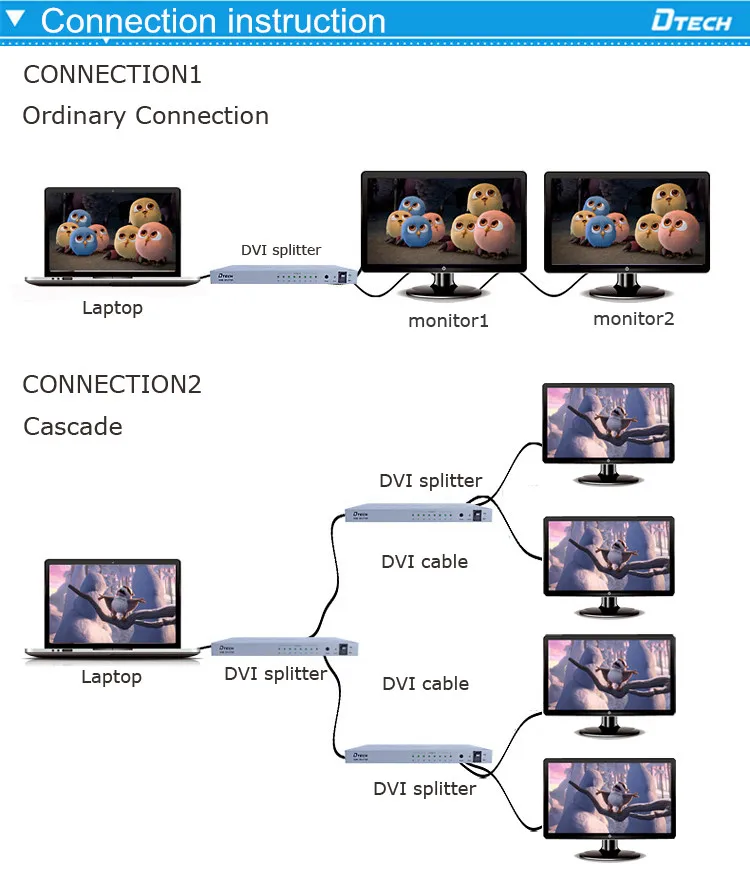

Connection diagram
Popular Displayport 225MHz 1 input 2 output audio DVI splitter
Application



Popular Displayport 225MHz 1 input 2 output audio DVI splitter



hot selling HD audio video IR transmitter and receiver ethernet UTP over cat5e cat6 LAN hdmi extender

About Us

Guangzhou DTECH Electronics Technology Co.,Ltd, established in 2000, is a professional audio & video manufacturer which is focused on research, development, production and sales of audio & video products, such as HDMI extender, splitter, KVM, matrix, switcher, converter, HDMI fiber cable and Type-C etc. OEM & ODM services are available. We are located in Guangzhou, 30 minutes to Baiyun Airport and 1 hour to Guangzhou Port. With 18,000 square meters factory and more than 150 staff. Our production strictly comply with ISO9001 standard, all the products are certified by: HDMI Adopter, CE, FCC, RoHS etc.

Packaging & Shipping

(1)by express :2~5working days (including DHL,UPS,EMS,Fedex)
(2)by sea:21~45working days
(3)by air:3~7working days
(4)by Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .


FAQ

Q1:What's your main product?
Dtech main product is audio and video product, such as exteder, splitter, switcher, converter, and matrix. Also, we have cable for hdmi, dvi, and hdmi fiber cable.


Q2:Can you supply samples?
Dtech could supply sample for customer.


Q3:What's your payment term?
Usually L/C,T/T,D/P,D/A,it is determined by our negotiation.


Q4:Can you customize product?
Yes,Dtech has own factory to support OEM&ODM.


Q5:What is the MOQ and Leading?
Dtech supports 1pc as MOQ for available stock. 3 working days if we have stock.


Q6:Do you have newest products?
Dtech has over 10 engineers to develop new product. Normally, we will launch 2 new product each month.
